 | Rope switch
|
Drawstring selection
Product number | ER5018 | ER6022 | ER1022 | ER1032(Bidirectional) |
Contact configuration | 2N/C+1N/O | 2N/C+1N/O | 4N/C+2N/O | 4 N/C+2 N/O |
Safety contact | 3N/C | 3N/C | 4N/C | 4 N/C |
Protection distance | 40M | 80M | 125M | 200M |
Product technical description
The rope pull switch is an emergency stop switch. When a person finds a safety abnormality, he can quickly pull the rope within the scope of the rope and stop it urgently to protect the safety of the operator.
The design of the rope pull switch is to keep the normal signal in the neutral position. No matter the rope is loose or the tension is locked, the equipment can be given a stop signal to prevent the product from causing serious accidents due to installation errors.

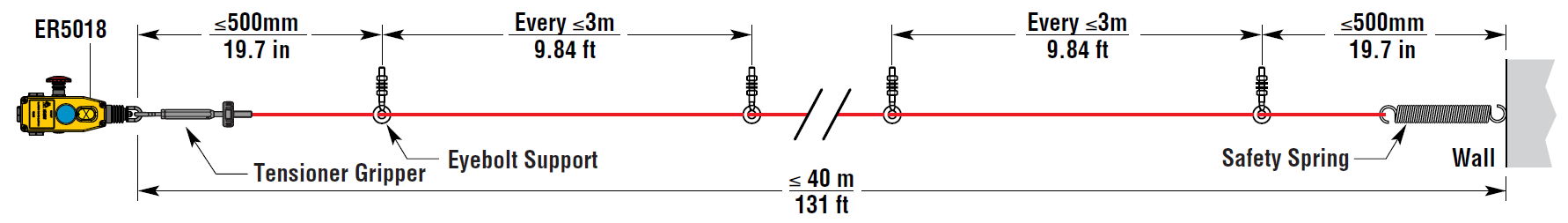

Rope span up to 5M-40m protection range (optional)

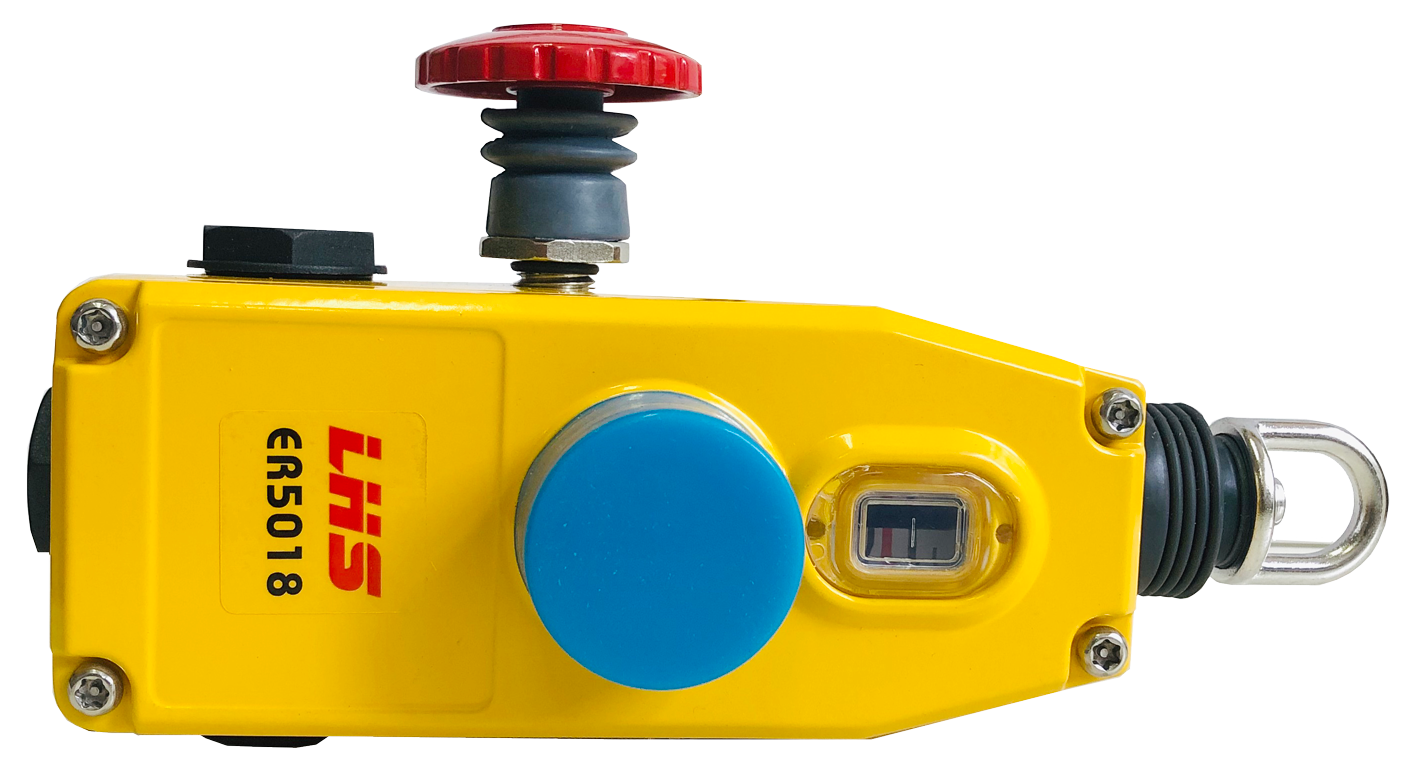

ER5018 Performance Specifications
Performance parameters:
|
|
ER5018 safety circuit design
 | Safety circuit module · Universal safety circuit building module · It is a configurable safety control module that supports multiple switch-type safety element inputs. · Optional 3 groups-6 groups of safety element input · Configuration software can be used to set the safety control logic to meet a variety of field application needs. |
